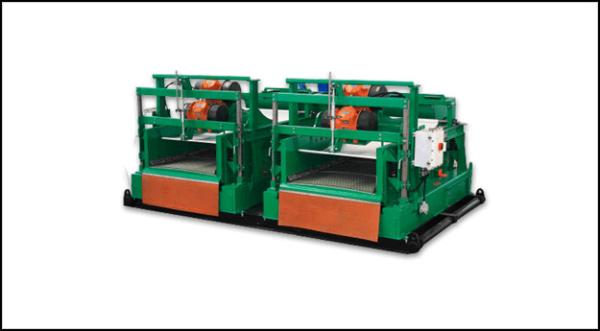

Explosion Proof ExdIIBT4 Solid Control Equipment Drilling Shale Shaker

Brand Name : ATO

Model Number : ZS Z-1

Certification : API

Place of Origin : China

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4sets/month

Delivery Time : 45 work days

Packaging Details : Wooden

Product : Shale shaker

Type : ZS Z-1

Screen specification : Edge-lining screen 3-1053 x 697 mm

Excitation engine : 2-1.865 KW

Vibration amplitVibration amplitudeude : > 5.5 mm

Vibration intensity : > 6.5 g

Explosion-proof marker : ExdIIBT4

Protection grade : IP55

Dimensions : L2945 * W 1920 * H1680 mm

Weight : 1850KG

Contact Now

Solids could be separated from liquids by making use of a vibrating basket of shale shaker; the basket is equipped with specifically sized shaker screen. Shakers are regarded as the most significant device to remove drilled solids. These get rid of the vast majority of drilled solids created throughout the process of drilling. They commonly produce 5 -8 g-forces to separate solids from the mud.

After the gas/mud separator and before other equipment for solid removal are positioned shakers. Rigs might utilize any shale shakers according to particular parameters of the well drilling. Typically, a number of shakers are used for regular drilling work.

Explosion Proof ExdIIBT4 Solid Control Equipment Drilling Shale Shaker

Screen specification	Edge-lining screen 3-1053 x 697 mm
Excitation engine	2-1.865 KW
Vibration amplitude	> 5.5 mm
Vibration intensity	> 6.5 g
Explosion-proof marker	ExdIIBT4
Protection grade	IP55
Dimensions	L2945 * W 1920 * H1680 mm
Weight	1850KG
