Serva TPH 400 Triplex Plunger Pump Truck Mounted Drilling Rig

Name: Serva TPH 400 Triplex Plunger Pump Truck Mounted Drilling Rig
Brand: Serva
Price: 1 USD

Brand Name : Serva

Model Number : Serva TPH 400

Certification : API

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1sets

Delivery Time : 45days

Packaging Details : wooden

Model : Serva TPH 400

Certificate : API

Industry : Drilling oil & gas

Maximum input horsepower : 600 BHP

Maximum rod load : 175,800 lbs

Stroke length : 8"

Gear ratio : 8.6:1

Approx. length : 77.75" (1,975mm)

Approx. width : 38.43" (976mm)

Approx. height : 45.51" (1,156mm)

Approx. weight,dry : 6,417 lbs

Contact Now

Truck Mounted Drilling Rig Serva TPH 400 Triplex Plunger Pump

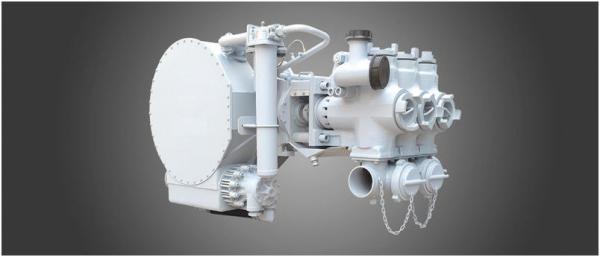

SERVA TPH 400 TRIPLEX PLUNGER PUMP

SERVA TPH 400 triplex plunger pumps are good for high-pressure well service. Each pump is equipped with an integral gear reduction box. It is designed to pump cement slurries, sand-laden fluids, crude oil, acids, mud and other oil well servicing fluids.

GENERAL SPECIFICATION

Maximum input horsepower	600 BHP
Maximum rod load	175,800 lbs
Stroke length	8"
Gear ratio	8.6:1
Approx. length	77.75" (1,975mm)
Approx. width	38.43" (976mm)
Approx. height	45.51" (1,156mm)
Approx. weight,dry	6,417 lbs

Serva TPH 400 Triplex Plunger Pump Truck Mounted Drilling Rig

KEY POINTS

Gear train: steel worm and bronze ring

Crankshaft: forged steel, four main bearings

Connecting rods: forged aluminum, split caps Insert bearings

Crossheads: cast steel

Pump power frame: high-strength steel weldment

Bearing type: roller

Oil system: oil pump driven by worm (std) or remote

Oil filter: Replaceable elements and magnetic strainer

Serva TPH 400 Triplex Plunger Pump Truck Mounted Drilling Rig
