Hydraulic Top Driven power swivel 50m Swamp Barge Drilling Rig

Brand Name : HY

Model Number : HY-50TZJ

Certification : ISO90001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 3 set / year

Delivery Time : 10 month

Packaging Details : Device Prizing

Type : Auger&Mud drilling

Usage : Offshore oil well

Condition : New

Power type : Hydraulic top-driven power

Warranty : 12 Months

After-sales service provided : 1 year

Dimension(l*w*h) : 70-120mm

Drilling depth : 50 m

Contact Now

HY-50TZJ Swamp 50 meter Drill Rig with Hydraulic top-driven power swivel for marsh or/ and transit zone

Swamp Drilling Rig

The swamp drill rigs are mostly customized designed for transit zone or swamp area. Different models of swamp drills are mounded on different chassis: different swamp buggy, barge or boat. The drill has mud and auger drilling functions with special designed structure to improve the efficiency of drilling in marsh or/ and transit zone.

Main features

● Hydraulic top-driven power swivel

● Light weight, heavy duty mast and hydraulic control pull-down chain

● Rod discharge with hydraulic control

● Compacted structure

● Compliant with HSE requirements

Specifications of HY-50TZJ Swamp Drill Rig

Drilling depth	50 m
Drilling methods	Auger, Mud
Drilling diameter	75～120 mm
Mud pump Rated displacement/pressure	160L/min/ 1.2 MPa
Chassis	Boat (optional: airboat, Hagglunds, Marsh buggy, or barge)
Engine power	55 kW
Engine rated speed	2600 rpm

Hydraulic Top Driven power swivel 50m Swamp Barge Drilling Rig

Why choose ATO ?

1 Strict quality control

2 Excellent cooperative factories that must be supply products to original factory

3 According to API standard, all of manufacturer have API license

4 Advantage price with high quality product

5 Provide cost-effective Customization product

Product Tags:

50m Swamp Barge Drilling Rig

Power Swivel Swamp Barge Drilling Rig

50m swamp drilling rig

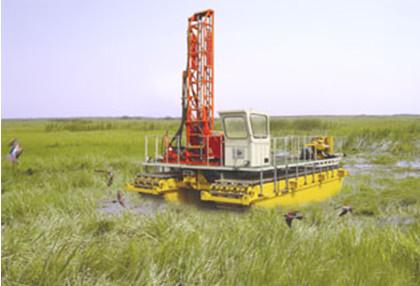

Hydraulic Top Driven power swivel 50m Swamp Barge Drilling Rig Images
