RMKP-310 310HP Drilling Rig Mud Pump 10000PSI Pressure

Product Categories

XIAN ATO INTERNATIONAL CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ATO

Certification : API

MOQ : 1 sets

Payment Terms : L/C, T/T

Input power rating (KW) : 213 (310HP)

Rated pump speed (RPM) : 175

Stroke Length (mm) : 203(8”)

Gear ratio : 4.625

Valve size (API) : 4#

Max. working pressure (Kg/sq.cm) : 703(10000PSI)

Contact Now

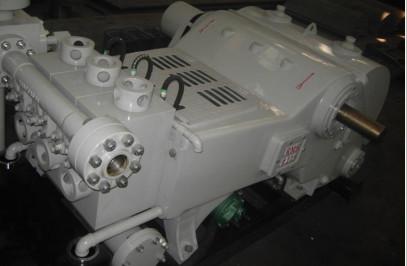

RMKP-310 Mud Pump

• Input power rating (KW) 213 (310HP)

• Rated pump speed (RPM) 175

• Stroke Length (mm) 203(8”)

• Gear ratio 4.625

• Rated speed of transmission shaft (RPM) 823

• Max. working pressure (Kg/sq.cm)

703(10000PSI)

• Valve size (API) 4#

• Max. liner diameter (in) Φ5”

• Max. displacement (GPM) 357

• Max. liner pressure (Kg/sq.cm) 95 (1350PSI)

• Diameter of suction pipe (mm) 158 (6 1/4”)

• Diameter of discharge pipe (mm) 58 (2 9/32”)

• Overall dimensions (with steel skid,LXWXH)

2900*1700*2000mm(114.2”x69”x79)

• Weight (Kg)(with skid) 5600(12400LBS)

RMKP-310 Pump Performance Data

The Over Installation Dimensions Drawing For RMKP-310
