425 lbs F-1000 MUD PUMP Rated Horsepower 1,000 HP Max Liner Size By Stroke Length 6-3/4" X 10"

Brand Name : ATO

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10 PIECES PER MONTH

Delivery Time : 10-15 WORK DAYS

Packaging Details : WOODEN BOX

Rated Horsepower : 1,000 HP

Rated Pump Speed : 140 SPM

Gear Ratio : 4.207:1

Discharge Connection : 5-1/8" 5,000 psi Flange

Suction Connection : 12"

Approximate Weight : 41,425 lbs

Contact Now

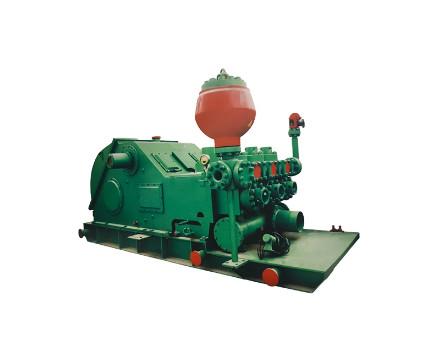

F-1000 MUD PUMP Rated Horsepower: 1,000 HP Max Liner Size by Stroke Length: 6-3/4" x 10"

Descriptions of F-1000 MUD PUMP Rated Horsepower: 1,000 HP Max Liner Size by Stroke Length: 6-3/4" x 10":

We mainly export and produce mud pump parts, including cylinder liners, pistons, piston inserts, valve inserts, oil seals, rod packings, hydraulic ends, etc. All products meet or exceed DIN and API standards.

The F series mud pumps can achieve the same manufacturing process and quality level as the F series mud pumps of EMSCO, IDECO, GARDNER DENVOR, OILWELL and other companies. At present, the F series mud pumps (from F-500 to F-2200) have been mass-produced and sold to major foreign oil fields. Customers are welcome to order.

Specifications :

Liner Size, inches		6-3/4	6-1/2	6	5-1/2	5	4
Rated Pressure, psi		2370	2558	3000	3572	4322	5000
Pump Speed	Input Power	Displacement, GPM
(SPM)	(HP)	Displacement, GPM
140	1,000	651	603	514	432	357	289
130	928	604	560	477	401	331	269
120	857	558	517	441	370	306	248
110	785	511	474	404	339	280	227
100	714	465	431	367	309	255	207
90	642	418	388	330	278	229	186
Volume/Stroke, gallons		4.65	4.31	3.67	3.09	2.55	2.07
