410KW PZ7 Mud Pump With 100mm Discharge Pipe And 352kg/sq.cm Max. Working Pressure

Brand Name : ATO

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10 PIECES PER MINTH

Delivery Time : 10-*15 WORK DAYS

Packaging Details : WOODEN BOX

Input power rating (KW) : 410 (550HP)

Rated pump speed (RPM) : 145

Max. working pressure (Kg/sq.cm) : 352 (5000PSI)

Diameter of suction pipe (mm) : 203 (8”)

Diameter of discharge pipe (mm) : 100 (4”)

Gear ratio : 4.625

Contact Now

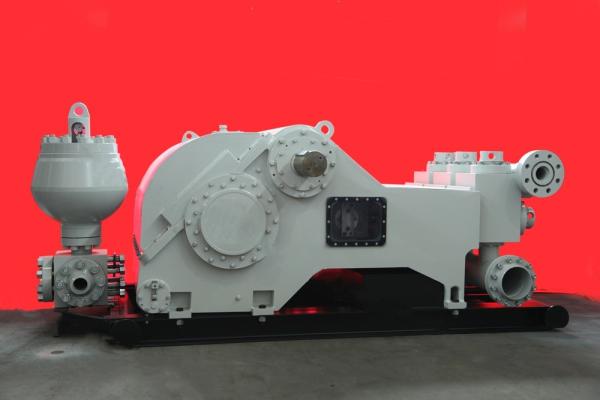

PZ7 MUD PUMP Input power rating (KW) 410 (550HP) Max. working pressure 352 (5000PSI)

Descriptions of PZ7 MUD PUMP Input power rating (KW) 410 (550HP) Max. working pressure 352 (5000PSI):

The PZ7 MUD PUMP features pleasing shape, advanced design, reasonal structure, and high efficiency. At power end, pinion shaft and bull gear are both of hard teeth, wear-resistant and transmission stable. Main parts at power end and all parts of fluid end are exchangeable with similar pumps from the United States.

Specifications:

Dia. of Liner	IN	7”	6-1/2”	6”	5-1/2”	5”	4-1/2”	4”
Displacement	Gallon/Minute	507	437	373	313	259	210	166
Displacement	Liter/Minute	1919	1654	1412	1185	980	795	628
Discharge	PSI	1673	1940	2277	2710	3279	4048	5000
Pressure	(Kg/sq.cm)	118	136	160	191	231	285	352
